Variable Linear Power Supplies
Features and Specifications

Features and Specifications



  • SOLID STATE ELECTRONICALLY REGULATED

  • FOLD BACK CURRENT LIMITING Protects Power Supply from excessive current and continuous shorted output

  • CROWBAR OVER VOLTAGE PROTECTION ON ALL MODELS

  • MAINTAIN REGULATION AND LOW RIPPLE at low line input Voltage

  • THREE CONDUCTOR POWER CORD

  • HEAVY DUTY HEAT SINK

  • INPUT VOLTAGE: 105-125VAC

  • EXTERNALLY ADJUSTABLE VOLTAGE: 2-15VDC

  • RIPPLE: LESS THAN 5MV PEAK TO PEAK (full load and low line)

  • LOAD REGULATION: 0.08% from 0 to Full Continuous Load​​

  • EFFICIENCY: 77%

  • OPERATING TEMP: -10 to 55°C

  • 220V MODELS AVAILABLE BY SPECIAL ORDER

  • Anderson Power Poles featured on -AP models

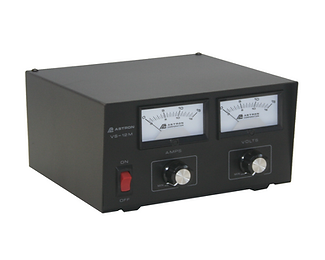

VS-12M



  • CONTINUOUS DUTY:

    • @13.8VDC: 9 Amps

    • @10.0VDC: 5 Amps

    • @05.0VDC: 2 Amps

  • ICS*:

    • @13.8VDC: 12 Amps

    • @10.0VDC: 6 Amps

    • @05.0VDC: 3 Amps

  • DIMENSIONS: 4½ x 8 x 9"

  • SHIPPING WEIGHT: 13 lbs

  • FUSE: GMC 3A

  • POWER TERMINALS:

    • Banana

  • AC POWER DRAW:

IDLE: 124mA

FULL LOAD: 2A

  • FAN COOLED: No

VS-20M

  • CONTINUOUS DUTY:

    • @13.8VDC: 16 Amps​

    • @10.0VDC: 9 Amps

    • @05.0VDC: 4 Amps

  • ICS*:

    • @13.8VDC: 20 Amps​

    • @10.0VDC: 10 Amps

    • @05.0VDC: 5 Amps

  • DIMENSIONS: 5 x 9 x 10½"

  • SHIPPING WEIGHT: 20 lbs

  • FUSE: GMC 5A

  • POWER TERMINALS:

    • 1/4"-20 Screw Type

  • AC POWER DRAW:

IDLE: 215 mA

FULL LOAD: 3.4A

  • FAN COOLED: No

VS-35M-AP



  • CONTINUOUS DUTY:

    • @13.8VDC: 25 Amps​

    • @10.0VDC: 15 Amps

    • @05.0VDC: 7 Amps

  • ICS*:

    • @13.8VDC: 35 Amps​

    • @10.0VDC: 16 Amps

    • @05.0VDC: 8 Amps

  • DIMENSIONS: 5 x 11 x 11"

  • SHIPPING WEIGHT: 29 lbs

  • FUSE: AGC 8A

  • POWER TERMINALS:

    • 1/4"-20 Screw Type

  • AC POWER DRAW:

IDLE: 320mA

FULL LOAD: 5.7A

  • FAN COOLED: No

  • Anderson Power Poles

VS-50M



  • CONTINUOUS DUTY:

    • @13.8VDC: 37 Amps

    • @10.0VDC: 22 Amps

    • @05.0VDC: 10 Amps

  • ICS*:

    • @13.8VDC: 50 Amps

    • @10.0VDC: 24 Amps

    • @05.0VDC: 11 Amps

  • DIMENSIONS: 6 x 13¾ x 11"

  • SHIPPING WEIGHT: 46 Lbs

  • FUSE: GMC 10A

  • POWER TERMINALS:

    • 1/4"-20 Screw Type

  • AC POWER DRAW:

IDLE: 324mA

FULL LOAD: 8.17A

  • FAN COOLED: No

VS-70M-AP



  • CONTINUOUS DUTY:

    • @13.8VDC: 57 Amps

    • @10.0VDC: 34 Amps

    • @05.0VDC: 16 Amps

  • ICS*:

    • @13.8VDC: 70 Amps

    • @10.0VDC: 38 Amps

    • @05.0VDC: 17 Amps

  • DIMENSIONS: 6 x 13¾ x 11"

  • SHIPPING WEIGHT: 48 Lbs

  • FUSE: MDA Ceramic 12A

  • POWER TERMINALS:

    • 1/4"-20 Screw Type

  • AC POWER DRAW:

IDLE: 340mA

FULL LOAD: 11.4A

  • FAN COOLED: Yes

  • Anderson Power Poles
