DC-DC Power Converters
Features and Specifications

Features and Specifications

  • Input Voltages ranging from 22-72VDC

  • Output Voltage of all models: 13.8VDC

  • Built-in Overvoltage, Overcurrent, and short-circuit protections.

  • Remote ON/OFF connection terminal for use with an Ignition Switch

  • Up to 94% Efficiency

  • Minimum Efficiency (at full load):

    • Models A, N: 92%​

    • Model ISO: 90%

  • RoHS Compliant

  • LED Visual Indicators: DC-OK (Green) and Fault (Red)

  • Operating Temp: -25 to +55​ºC

  • Storage Temp: -40 to +85ºC

  • Overtemperature Protection at 70ºC

  • *ICS Intermittent Communication Service (50% Duty Cycle, 5min. On, 5min. Off)

24 to 12VDC Converters
  • Input Voltage: 22-32VDC

  • Continuous Output:

    • N2412-12: 10 Amps​

    • N2412-24: 20 Amps

    • N2412-40: 30 Amps

  • Peak Current ICS*

    • N2412-12: 12 Amps​

    • N2412-24: 24 Amps

    • N2412-40: 40 Amps

  • Size

    • N2412-12: 1.8 x 6.2 x 6.8"​

    • N2412-24: 1.8 x 6.2 x 7.3"

    • N2412-40: 1.8 x 6.2 x 9.0"

  • Weight

    • N2412-12:​ 1.8lbs

    • N2412-24: 2.0lbs

    • N2412-40: 2.2lbs

48 to 12VDC Converters
  • Input Voltage: 30-56VDC

  • Continuous Output:

    • A4812-12: 10 Amps​

    • A4812-24: 20 Amps

    • A4812-40: 30 Amps

  • Peak Current ICS*

    • A4812-12: 12 Amps​

    • A4812-24: 24 Amps

    • A4812-40: 40 Amps

  • Size

    • A4812-12: 1.8 x 6.2 x 6.8"​

    • A4812-24: 1.8 x 6.2 x 7.3"

    • A4812-40: 1.8 x 6.2 x 9.0"

  • Weight

    • A4812-12:​ 1.8lbs

    • A4812-24: 2.0lbs

    • A4812-40: 2.2lbs

​ISOLATED MODELS

The ISO converters were designed for use on electric forklifts (where high line transients and voltage spikes are common) and will operate on positive or negative electrical systems.

ISO2412
  • ISOLATED

  • Input Voltage: 22-36VDC

  • Continuous Output:

    • ISO2412-12: 10 Amps​

    • ISO2412-24: 20 Amps

  • Peak Current ICS*

    • ISO2412-12: 12 Amps​

    • ISO2412-24: 24 Amps

  • Size

    • ISO2412-12: 1.8 x 6.2 x 6.8"​

    • ISO2412-24: 1.8 x 6.2 x 7.3"

  • Weight

    • ISO2412-12:​ 1.8lbs

    • ISO2412-24: 2.0lbs

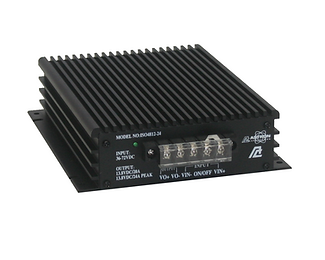

ISO4812
  • ISOLATED

  • SAE-J1113-11 Specification for Immunity to Transients (Surges)

  • Input Voltage: 36-72VDC

  • Continuous Output:

    • ISO4812-12: 10 Amps​

    • ISO4812-24: 20 Amps

  • Peak Current ICS*

    • ISO4812-12: 12 Amps​

    • ISO4812-24: 24 Amps

  • Size

    • ISO4812-12: 1.8 x 6.2 x 6.8"​

    • ISO4812-24: 1.8 x 6.2 x 7.3"

  • Weight

    • ISO4812-12:​ 1.8lbs

    • ISO4812-24: 2.0lbs
