Switching Power w/ Radio Housing
Features and Specifications

Features and Specifications

  • Fold Back Current Limiting

  • Crowbar Over Voltage Protection

  • Internal Fuse Protection

  • Over Temperature Shutdown

  • Certified to cTUV 60950-1

  • Built-in EMI filter certified to EN55022/CISPR 22 (CLASS B), FCC Part15 (CLASS B), EN55024, EN61000-3-2 (CLASS A), EN61000-3-3 (HARMONIC)

  • Certified to Energy Star and CEC Enviromental standards

  • RoHS Compliant (Lead Free)

  • Ripple: 40mV Peak to Peak

Downloadable 1 Page Datasheet.pdf

SS-10/12/18

  • CONTINUOUS DUTY:

    • SS-10: 7A

    • SS-12: 10A

    • SS-18: 15A

  • ICS*:

    • SS-10​: 10A

    • SS-12: 12A

    • SS-18: 15A

  • POWER TERMINALS: Terminal Block, Screw Tight

  • AC POWER DRAW

    • IDLE: 105 mA

    • FULL LOAD:

      • SS-10​: 1.3A

      • SS-12: 1.6A

      • SS-18: 2.1A

  • FAN COOLED: No

SS-25

  • CONTINUOUS DUTY: 20A

  • ICS*: 25A

  • POWER TERMINALS: Terminal Block, Screw Tight

  • AC POWER DRAW

    • IDLE: 216 mA

    • FULL LOAD: 3.6A

  • FAN COOLED: Yes

MT/XPR5
  • MODELS:

    • SS-12MT/XPR5​

    • SS-18MT/XPR5

  • DESIGNED FOR:

    • Motorola MotoTurbo

    • Motorola XPR5000 Series

  • DIMENSIONS:  4¼ x 7 x 9"

  • WEIGHT: 3.6 lbs

  • POWER TERMINALS:

    • Terminal Block, Screw Tight

NX5
  • MODELS:

    • SS-12NX5​

    • SS-18NX5

  • DESIGNED FOR:

    • Kenwood NX5000 Series

  • DIMENSIONS: 4¼ x 7 x 9"

  •  WEIGHT: 3.6lbs

  • POWER TERMINALS:

    • Terminal Block, Screw Tight

SM/GTX/M1225
  • MODELS:

    • SS-10SM/GTX/M1225​

    • SS-12SM/GTX/M1225

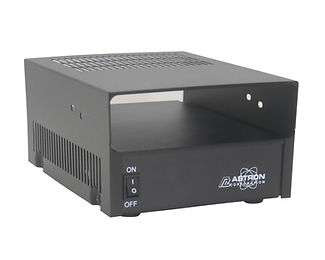

    • SS-18SM/GTX/M1225

  • DESIGNED FOR:

    • Motorola SM50

    • Motorola SM120

    • Motorola GTX

    • Motorola M1225​

  • DIMENSIONS:  4¼ x 7 x 9"

  • WEIGHT: 3.6 lbs

  • POWER TERMINALS:

    • Terminal Block, Screw Tight

TK-7180
  • MODELS:

    • SS-10TK-7180​

    • SS-12TK-7180

    • SS-18TK-7180

  • DESIGNED FOR:

    • Kenwood TK7180​

    • Kenwood TK8180

    • Kenwood TK7160

    • Kenwood TK8160

  • DIMENSIONS:  4¼ x 6½ x 9"

  • SHIPPING WEIGHT: 3.6lbs

  • POWER TERMINALS:

    • Terminal Block, Screw Tight

CDM
  • MODEL:

    • SS-25CDM​

  • DESIGNED FOR:

    • Motorola CDM 750

    • Motorola CDM 1250

    • Motorola CDM 1550

  • DIMENSIONS: 7½ x 6 x 9"

  • WEIGHT: 6.5lbs

  • POWER TERMINALS:

    • Terminal Block, Screw Tight
